MG inserts-Slotting Cutter

Product Introduction: MG Series Slot Tools

The MG Series of slot tools is a high-performance line designed for precision machining in demanding industrial applications. These tools are engineered to deliver exceptional results in slotting, profiling, and pocketing operations, making them a trusted choice for manufacturers worldwide.

Technical Features¹

1. Advanced Insert Geometry:

   • The MG Series features sharp cutting edges and optimized chip flute designs, ensuring high precision and smooth machining.

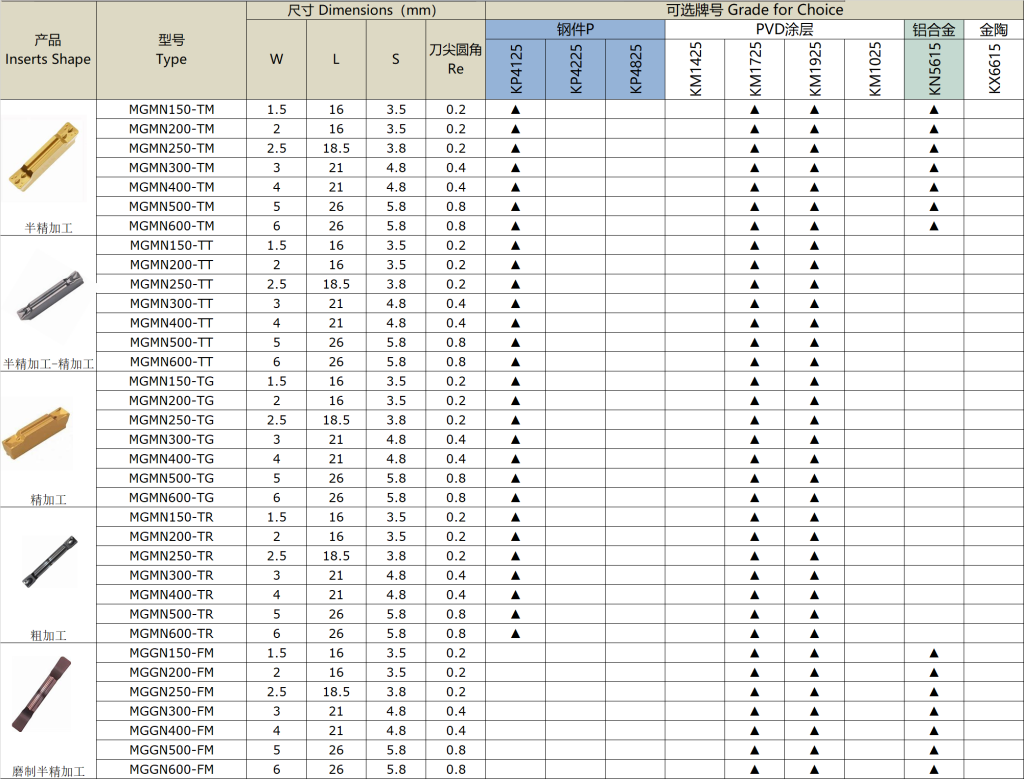

   • Inserts are available in a range of sizes, including 1.5mm, 2mm, and 3mm cutting lengths, to suit various machining requirements.

2. Durable Construction:

   • High-strength carbide substrates provide excellent rigidity and resistance to deformation, making the tools suitable for heavy-duty machining.
   • The tools are designed for both roughing and finishing operations, offering versatility across different machining stages.

3. Efficient Chip Removal:

   • The flute designs ensure efficient chip removal, reducing machining time and improving surface finish.

4. High-Quality Inserts:

   • Inserts are coated with advanced PVD/CVD layers, such as TiN, TiCN, and Al2O3, ensuring superior wear resistance and prolonged tool life.

Product Advantages²

1. Versatile Applications:

   • Suitable for steel, stainless steel, cast iron, and non-ferrous metals, the MG Series caters to a wide range of machining needs.

2. Interchangeable Inserts:

   • The interchangeable insert design minimizes replacement costs and downtime, allowing for quick adjustment to different machining operations.

3. Customizable Solutions:

   • A wide range of insert grades (e.g., KP4125, KM1025, KN5615) are available, allowing users to tailor the tools for specific materials and applications.

4. Cost-Effective:

   • The MG Series offers a balance of performance and affordability, making it a cost-effective solution for modern machining.

5. Fast Delivery:

   • Key grades are always in stock, ensuring quick delivery for urgent orders.

Application Scenarios³

1. Steel Machining:

   • Roughing and Semi-Finishing:
     • The MG Series is ideal for machining deep slots and large-scale profiling in steel components.
     • Recommended Grades: KP4125, KP4225, KP4825 (optimized for steel processing with excellent wear resistance).

2. Stainless Steel Processing:

   • Continuous and Interrupted Cutting:
     • The KM1025 and KM1425 grades are designed for stainless steel machining, providing sharp cutting edges and high sulfuric resistance.

3. Cast Iron and Aluminum Machining:

   • Cast Iron:
     • KK3225 and KK3825 grades are ideal for cast iron machining, offering excellent thermal shock resistance.
   • Aluminum:
     • KN5615 inserts are recommended for aluminum processing, featuring a sharp edge design and non-coated substrate for optimal performance.

4. Precision Machining:

   • Precision Slotting:
     • Tools like MGMN150-TG are recommended for high-precision slotting, offering excellent surface finish and dimensional accuracy.

5. General Machining:

   • Slotting and Profiling:
     • Tools like MGGN150-FM are widely used for general slotting and profiling operations, with dimensions tailored for versatility.

6. High-Speed Machining:

   • For high-speed operations, the KX6615 grade is recommended, offering superior red hardness and resistance to fatigue.

True Usage Scenarios

• Aerospace Industry:
  MG Series tools are used for machining complex components, such as aircraft engine parts and landing gear components.

• Automotive Industry:
  The tools are applied in machining engine blocks, gear housings, and other automotive components requiring high precision.

• General Engineering:
  MG Series tools are essential for fabricating mechanical components, such as gears, bearings, and hydraulic cylinders.

• Die and Mold Industry:
  Precision slotting tools are used to create intricate details and cavities in molds and dies.

With their advanced features, customizable options, and wide range of applications, the MG Series is a reliable choice for industries requiring high-quality machining solutions.
